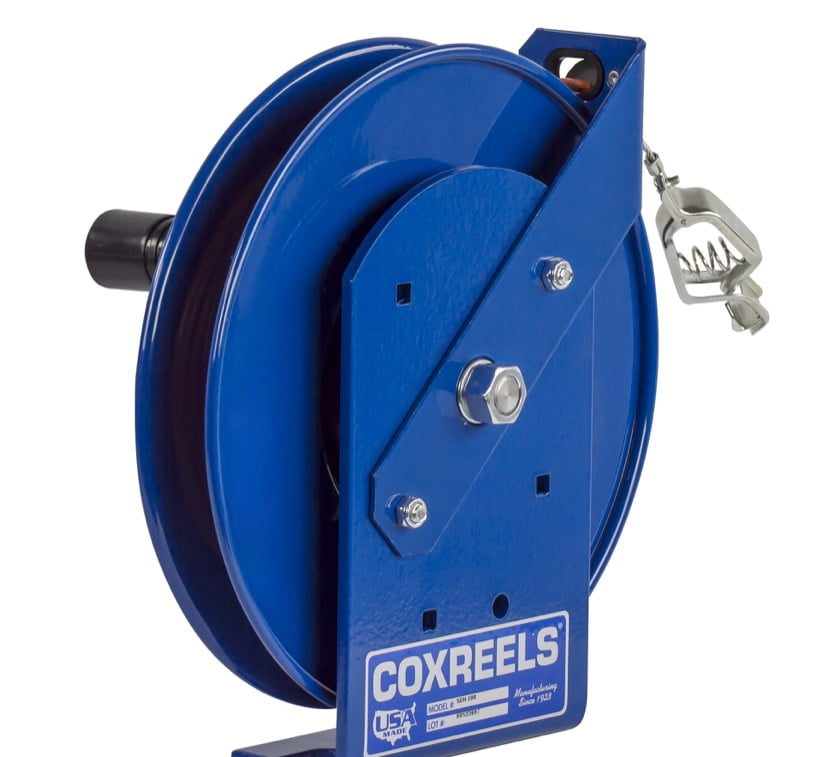

COXREELS SDH-100 Static Discharge Hand Crank reel w/ 100' of galvanized cable

COXREELS SDH-100 Spring Rewind Static Discharge Hand Crank Cable Reel: 100' cable <br>COXREELS SD and SDH Series "Static Discharge" cable reels are built heavy duty and designed for long lasting performance. They are specifically design to be used in combustible environments where the static buildup could ignite a spark and subsequent explosion. Static discharge or grounding reels are commonly paired with fuel hose reels found on page 33.<br><br> Available with 7 strand x 7 wire galvanized steel or stainless steel 3/32" cable <br> High visibility orange vinyl cable cover (O.D.= 5/32" with cable cover) <br> Includes cable, ball stop &amp; 50 Amp grounding clamp (100 Amp copper grounding clamp available, consult factory)<br>Design &amp; Structure: <br> Compact static discharge cable reel available in spring rewind or direct hand crank retraction <br> Commonly paired with fuel reels &amp; used in combustible environment for grounding purposes <br> Guide arm adjusts to wall, floor, vehicle &amp; overhead positions <br> Solid one piece, heavy gauge 1/4" steel base for maximum stability <br> 1" solid steel axle &amp; lubricated precision bearings for smooth rotation <br> Bottom of base is un-powder coated to ground reel<br>Retraction: <br> Controlled retraction speed up to 80% slower on EZ-Coil models :: See page 7 for details <br> (On SD Series only) Enclosed factory tuned &amp; matched cartridge-style spring motor <br> (On SD Series only) Non corrosive stainless steel spring, pawl &amp; zinc plated ratchet <br> (On SD Series only) Multi-position non-sparking lock ratchet mechanism secures cable at desired length <br> (On SDH Series only) Simple design with direct hand crank action<br><br>Features:<br>~ Professional grade heavy duty steel construction ~ Durable proprietary CPC powder coat process ~ Rolled edges &amp; ribbed discs provide strength &amp; safety ~ Leading 2-year manufacturer"s limited warranty ~ Made in the U.S.A. - Sold &amp; Supported Worldwide<br><br>Bearings: 1" Permanently Lubricated Precision Bearings<br>Max Temp: N/A<br>I.D: <br>O.D: <br>Length: <br>I.D Optional Capacity: 0<br>O.D Optional Capacity: 0<br>Length with Optional Capacity: 0<br><br>Reel Inlet: N/A<br>Seal Type: N/A<br>Swivel Material: N/A<br>Hose Ends: N/A<br>Hose Material: N/A<br>Max PSI: 0<br>Hose-Cord-Cable Included?: Y<br><br>Dimensions (inches):<br> W 5.75<br>H 11.5<br>L 11<br><br>Reel Series: SDH Series - Spring Driven<br>Reel Construction: Steel<br>Reel Design: Single Pedestal

• RETRACTION - Compact static discharge cable reel with direct hand crank retraction.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• 1/4\
